Expander System pivot pins

Choose longer-lasting pin assemblies, minimize wear and simplify installation and maintenance. From a single aftermarket replacement, to value-added first-fit arrangements, we turn pins into power and performance.

THE STRENGTH OF YOUR MACHINE IS DEFINED BY ITS PIVOTS

The origins of the Expander System go back all the way to the 1950s, with a loose joint and a rusty nail being the first step of a remarkable journey. The story of Expander is one of entrepreneurial spirit, expert engineering, and a simple yet innovative design - turning pins into power and performance. Expander System is the superior pivot pin solution for industries where machines just need to keep going.

Replacement pins for machine owners, operators and repair companies (MRO).

MRO

First-fit design and aftermarket parts for Original Equipment Manufacturers (OEM).

OEM

Webshop Box.jpg

Browse or login to the Expander System webshop.

To webshop

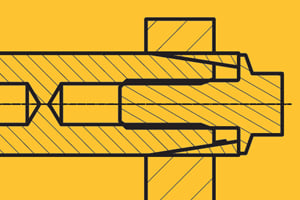

Pivot pin engineering expertise

Expander System has been installed more than two million times to overcome wear and repair challenges in machinery or equipment with mechanical pivots. With these pins central to the function of almost all heavy equipment, we specialize in their design to extend operation, shorten downtime, simplify installation and removal, and permanently eliminate lug wear.

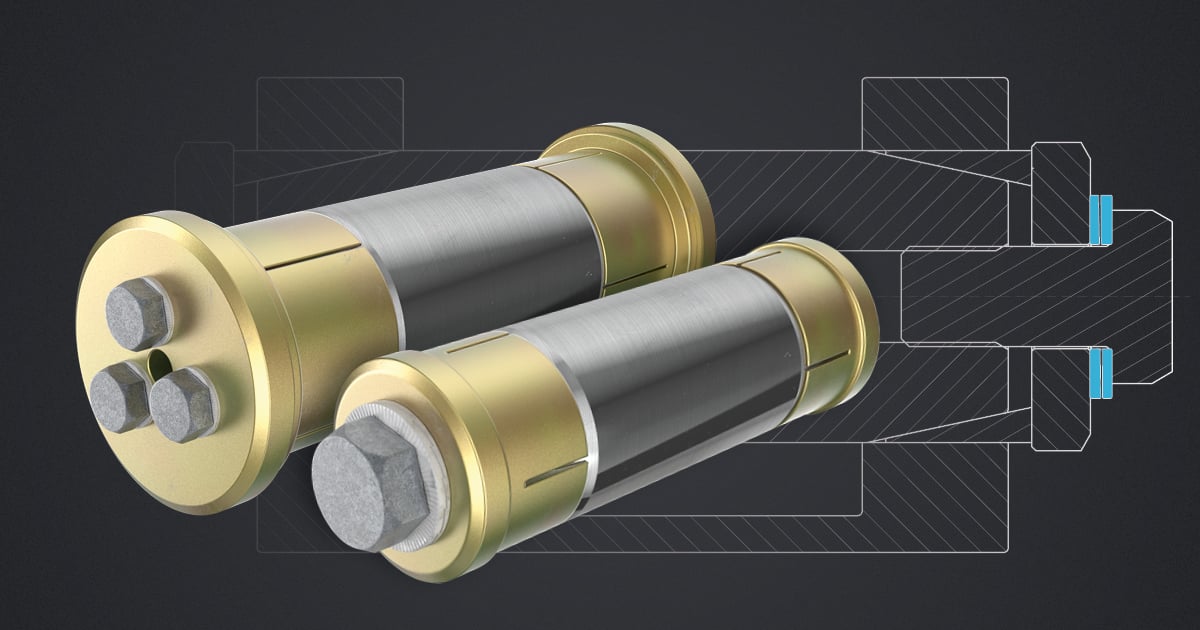

HOW IT WORKS

The Expander System is installed directly into the existing mounting
Upon tightening the fasteners, the washer presses the slotted expansion sleeve up the tapered ends of the pin
The sleeves expand, conform with the wear pattern and lock the system in the lug ears
Once retorqued, the system will lock from both sides

Permanently eliminate lug wear

Lug wear occurs when pivot joints experience play, due to the clearance between bore holes and conventional pins. The sleeves of Expander System expand to conform to the wear pattern and lock the system into place.

Change the load case

From simple support to fixed support, reduce bending to avoid pin seizure and redistribute load on the bearing. Less impact force on the bearing reduces overall pivot wear.

Reduce line boring & welding

Since the Expander System can be mounted directly into the worn lugs, there is no need for welding and line boring. In many applications, it can be installed on-site and operations can resume after a few hours.

"We save time for ourselves and above all for the customer.

Expander System is a simple solution to a big problem"

- Thomas Johnsson, Delvator Sweden Aftermarket Manager

FAST DELIVERY

Rapid lead times for aftermarket parts that are customizable down to the millimeter.

AN EXACT FIT

80,000 designs available online, built to the precise tolerances of leading equipment models.

OEM SPECIFIED

Installed more than two million times worldwide. We're able to meet any requirements.

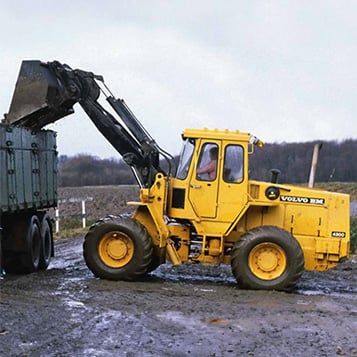

Volvo Construction Equipment

Field-tested Expander System in the steering cylinder of a BM 4300 wheel loader. The loaders were running 24/7 at Swedish company LECA AB (Light Expanded Clay Aggregate) and showed zero occurrence of further lug wear in more than 50,000 hours (almost six years) after the installation.

QUALITY & MANUFACTURING

Certification

Based on your needs, we deliver certificates and perform testing. For example, certificates according to EN10204 or Ultrasonic-, Magnetic particle- and Charpy testing.

Quality

Our production facilities around the world are equipped to enable high-speed manufacturing and delivery of complete pivot assemblies. We invest in the latest production technology to ensure maximum capability and quality, and we produce all parts of the Expander System.

Traceability

Expander System pins are marked with a lot number to track exactly where the steel originates and when it was made. As a manufacturer, you also have the opportunity to mark Expander axles with your brand to show your customers that you take pride in the details.

Certificates and approvals

From rigorous testing based on strict quality standards, in-house and out in the field, Expander products come with a function warranty. Provided installation and maintenance are done correctly, our products will eliminate future lug wear and perform as intended.

Nord-Lock Group lifetime warranty

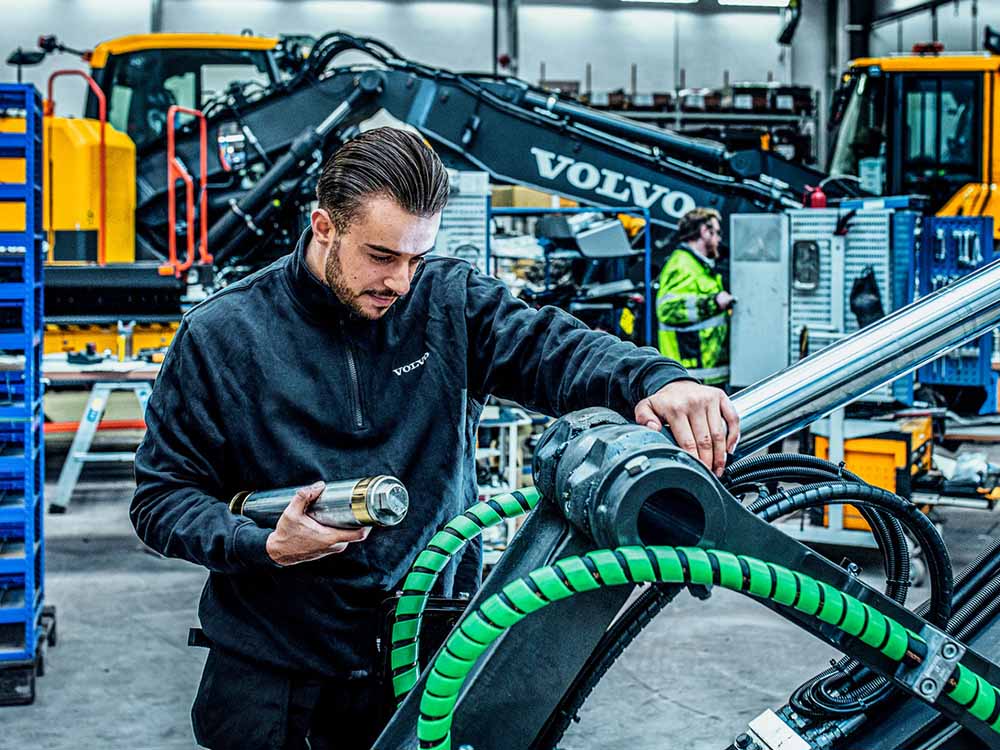

The design is adaptable for any obstacle, lubrication and application needs. Show us your application and we will help you to identify the perfect Expander solution.

Technical support

Webshop

ORDER ONLINE

Manage your account in our webshop with easy access to existing pin designs, checkout, and order tracking.
